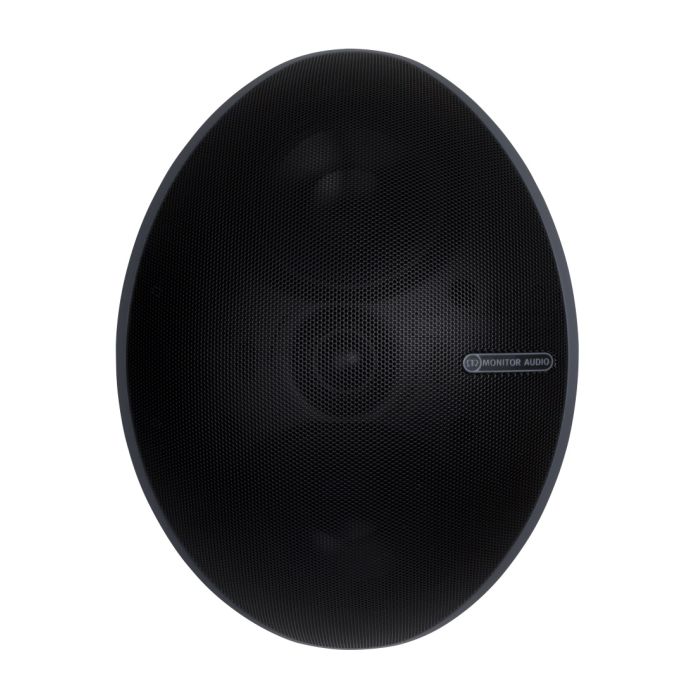

Monitor Audio Vecta V240-LV Line Level Indoor Outdoor Speaker

In stock
SKU
V240-LV
Special Price £316.00 Regular Price £395.00

Monitor Audio Vecta V240-LV Line Level Speaker can be simply installed in places where other speaker choices would prove impractical. In both domestic and commercial locations, the speaker can be wall-mounted (horizontally or vertically) and discreetly installed under eaves or corner.

With an IP55 rating, the V240-LV is designed to withstand extreme environmental exposure and to deliver incredible audio quality for a lifetime. The compact form factor and unique design aesthetics ensure the speaker blends seamlessly into the background, providing architects and installers with a fresh choice for discreet internal and external audio applications.

Driver and System design: The dual 4" C-CAM metal cone drivers have been developed to be placed on a curved baffle and to deliver a controlled sound field that minimises ceiling or wall reflections, when mounted under eaves or in a corner. The centrally mounted C-CAM tweeter ensures dispersion at the crossover point matches the mid-range, providing smooth off-axis frequency response. The fully sealed box cabinet is resistant to air noise and the ingress of water and dirt.

Fitting: Once the bespoke bracket is installed and connected, the speaker simply drops into position and is secured with a single screw. This gives a precise electrical connection automatically and with no visible wires. The intelligent design makes it easier to install the speaker in the most difficult locations.

Please note: Brackets Sold Separately.



Features

  • Stylish, compact, and versatile architectural ‘All-weather’ design
  • Dual 4" Drivers featuring C-CAM metal cone technology
  • 25 mm (1") C-CAM Dome tweeter
  • Sealed enclosure impervious to ‘all weather’ environments – Rated to IP55
  • Intelligent automatic connection system – easier to install with no visible wires.
  • Straight wall mount bracket V-MOUNT – Providing 25 degrees tilt (optional wedge adds extra 32.5 degrees)
  • Corner bracket V-CORNER for corner or under eave installation
  • High-density ABS enclosure with rust proof grille
  • Available in black or white
  • Paintable to match a custom installation



Monitor Audio Warranty:
Monitor Audio Custom Install Speaker Series carry a Lifetime Warranty

We are authorised Monitor Audio retailers. Brand new and complete with the full warranty.

System Format

2-way (3 driver)

Frequency Response (-6 dB)

70 Hz – 25 kHz

Sensitivity (1W@1M)

88 dB

Nominal Impedance

70/100 Volt line level

Minimum Impedance

N/A

Switch

70 V (2, 4, 8, 16, 32) power level

Maximum SPL

108 dBA (each)

Power Handling (RMS)

100 W

Recommended Amplifier Requirements

25 – 100 W

Bass Alignment

Sealed cabinet

Crossover Frequency

2.5 kHz

Connection

Gold plated push terminals – attached to bracket

Environmental Protection Rating

IP55 -25° to 65° C

Bracket Pivot Angle

Wall: 25 degrees. Wedge: Additional 32.5. Total Max: 45.
4-point cluster bracket - vertical.

Drive Unit Complement

2 x 4" Drivers featuring C-CAM metal cone technology
25 mm (1") C-CAM dome tweeter

Finishes

Black or White (Signal White, RAL 9003)

Dimensions (H x W x D)

335.9 x 243.2 x 150 mm (131/4 x 99/16x 57/8")

Weight

3.56 kg (7 lb 14 oz)
