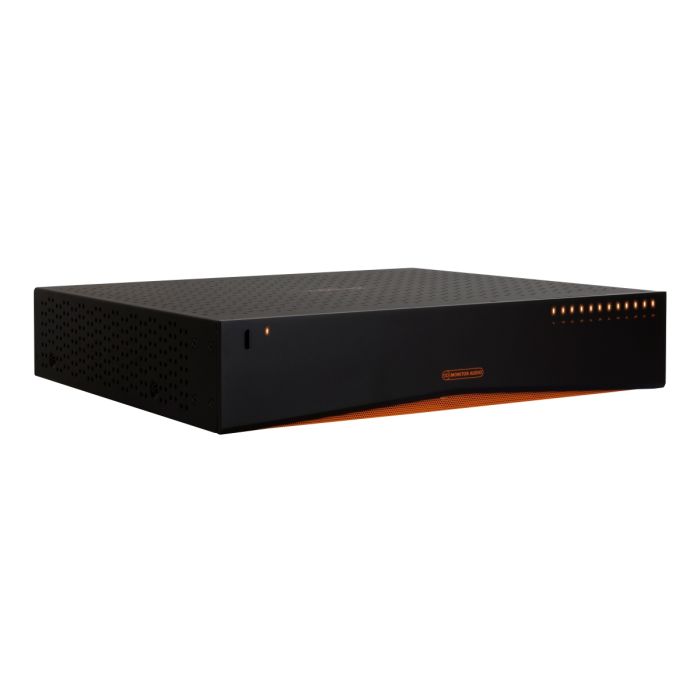

0800 009 6998Monitor Audio IA60-12 Distribution Amplifier
Monitor Audio IA60-12 Distribution Amplifier. From our line of distribution amplifiers, meticulously designed to satisfy the customer and the installer, the IA60-12 powers up to 12 channels (six stereo pairs) and is configurable to 1, 2, 3, 4, 5, 6, or 12 channels. Employing Hypex amplifier technology housed in a 2U case, we front-mount the power switch and the trigger input (– 3 – 30 V AC or DC) provides signal for additional amplifiers or other equipment.
This model offers Buss Inputs and A/B Loop Outputs – the Loop outputs are non-buffered, meaning that the maximum number of amplifiers that can be looped together will depend on the output capability of your source component. Smoothly delivering 60 watts per channel at 4 ohms, the IA60-12 lets you trust in Monitor Audio to successfully your project.
Monitor Audio Warranty:
Monitor Audio Amplifiers carry a 5 Year Warranty
'Connect' IP Control
N/A
Channel Number
12 (6 Stereo Pairs)
Power (W / Channel) | 4 ohms
60 W
Power (W / Channel) | 8 ohms
45 W
Power (W / Channel) | Bridge (8 ohms)
100 W (6CH)
Power (W / Channel) | 70V
N/A
Input Impedance
20 K ohms
Output Impedance (Loop RCA)
600 ohms
Input Sensitivity
100 mV / 1 W, 700 mV – Full power
Maximum Input Voltage
2.9 V
Signal to Noise (SN:R)
-100 dB (20 Hz – 20 kHz)
Frequency Response
5 Hz – 50 kHz
Total Harmonic Distortion THD + N@1 KHz
0.03%
Rack Height
2U
IP Communication
N/A
Mains Operating Voltage
100 –120 V @ 60 Hz
220 – 240 V @ 50 Hz
Fuse Rating
10 A (T10AL ~ 250VAC)
Standby Power Consumption
<0.5 W (green mode)
Networked Standby Power Consumption
N/A
Dimensions (Without Feet (H x W x D))
86.8 x 438 x 427 mm (37/16x 171/4 x 1613/16")
Dimensions (With Feet (H x W x D))
97.2 x 438 x 427 mm (313/16x 171/4 x 1613/16")
Width (including rack brackets)
482 mm (19")
Weight
7.34 kg (16 lb 2 oz)
