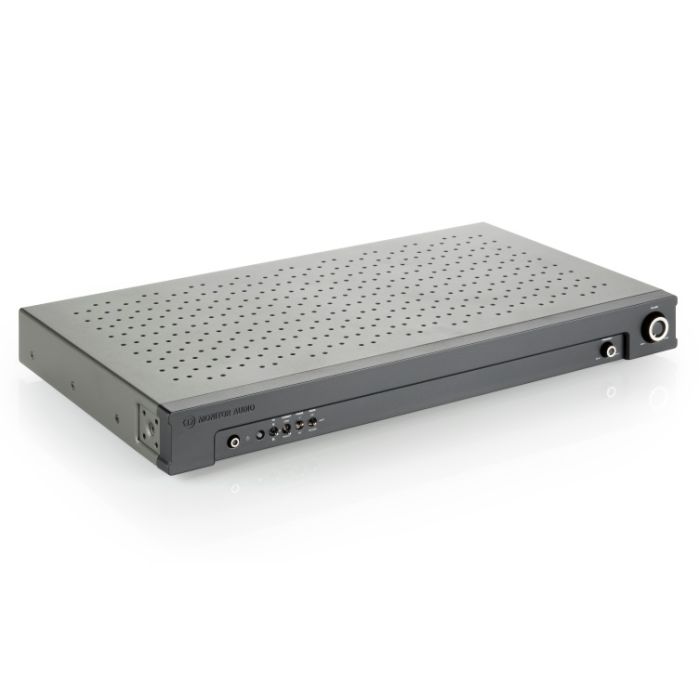

Monitor Audio IWA-250 Amplifier (IWS-10)

Description

Monitor Audio IWA-250 Amplifier (IWS-10) can be configured to switch on automatically using input signal sensing, or by using the preferred 12v trigger link from and AVR or system source. The IWA-250 will then automatically be switched on and off with the AVR, TV or system remote control handset.

The amplifier utilises a cool running Class D power stage driven by a PWM with integrated DSP. All filtering and functionality are controlled in the software for precise and reliable operation. It offers a choice of single LFE, balanced XLR and stereo RCA inputs. Output connection is made via two sets of push type terminals to provide connection to one or a pair of IWS-10 drivers. The front panel provides access to all control features for easy adjustment when fitted into a rack bay. An EQ switch provides a selection of music, movie and impact presets for the ideal response in-room. There is also an enclosure switch to calibrate the drive characteristics when the IWS-10 is used within or without the IWB-10 back box.

Key Features:

Rigid, high quality steel case
Switch mode power supply
Class D power amplifier delivering up to 250watts into 4ohms (dual IWS-10 drivers)
High efficiency design resulting in cool running – low thermal output.
DSP controlled with advanced limiters
<0.5watt standby power consumption (ErP certified)
DC short circuit protection, over-current and thermal protection

Front Panel Features:

Volume Control
Enclosure switch (enclosure or open baffle)
EQ profile switch (music, movie, impact)
Phase switch (0-180)
Crossover control (variable low pass from 40-120Hz)
Mains power switch
Power mode switch (auto sense/trigger, off, on)
Power LED with fault indication.
Rear Panel Features
RCA stereo inputs
LFE input (RCA and balanced XLR)
Two sets of spring loaded push terminals for simple installation of one or two ISW-10
Fused IEC mains socket
Trigger input (3.5mm mono mini-jack socket)
