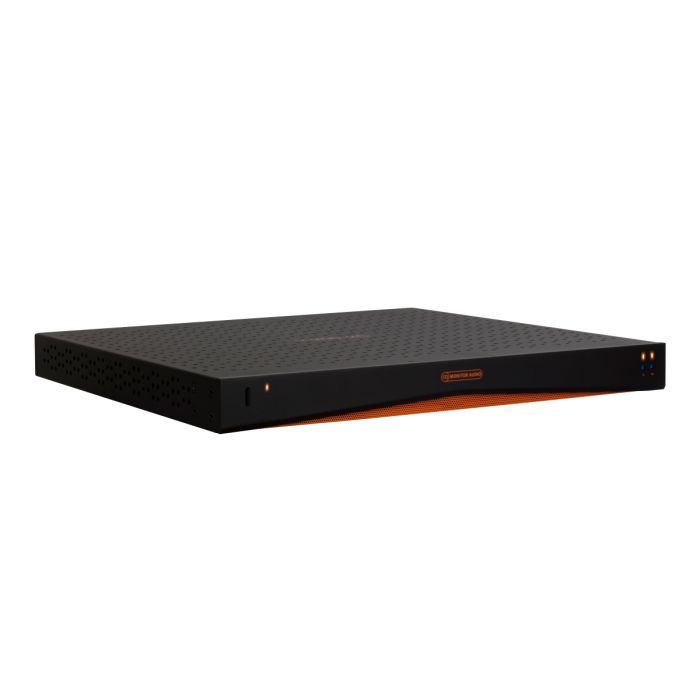

Monitor Audio IA200-2C Installation Amplifier

In stock
SKU
IA200-2C
Call for Price

Monitor Audio IA200-2C Installation Amplifier. A slim 1U rack height, it universally fits into most racks whilst delivering 93% energy efficiency. The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. A visual match for the rest of the Monitor Audio Installation Amplifier line, the IA200-2C is ready for any project.

Works with –

Monitor Audio Warranty:
Monitor Audio Amplifiers carry a 5 Year Warranty

'Connect' IP Control

Yes

Channel Number

2 (1 Stereo Pair)

Power (W / Channel) | 4 ohms

200 W

Power (W / Channel) | 8 ohms

150 W

Power (W / Channel) | Bridge (8 ohms)

470 W (1CH)

Power (W / Channel) | 70V

N/A

Input Impedance

20 K ohms

Output Impedance (Loop RCA)

600 ohms

Input Sensitivity

100 mV / 1 W, 1230 mV – Full power

Maximum Input Voltage

2.9 V

Signal to Noise (SN:R)

-100 dB (20 Hz – 20 kHz)

Frequency Response

5 Hz – 50 kHz

Total Harmonic Distortion THD + N@1 KHz

0.03%

Rack Height

1U

IP Communication

TCP/IP (RJ-45 10/100 Base T)

Mains Operating Voltage

100 – 120 V @ 60 Hz

220 – 240 V @ 50 Hz

Fuse Rating

5 A (T5AL ~ 250VAC)

Standby Power Consumption

<0.5 W (green mode)

Networked Standby Power Consumption

<2 W

Dimensions (Without Feet (H x W x D))

42.4 x 438 x 427 mm (111/16x 171/4 x 1613/16")

Dimensions (With Feet (H x W x D))

52.8  x 438  x 427 mm (21/16x 171/4 x 1613/16")

Width (including rack brackets)

482 mm (19")

Weight

5.3 kg (11 lb 10 oz)
