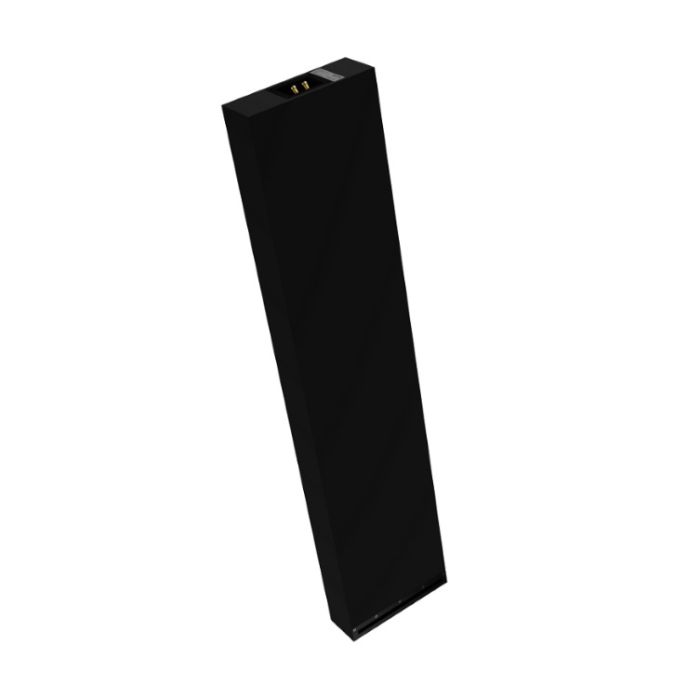

Amina ALF120 In-Wall or Ceiling Passive Subwoofer

In stock
SKU
ALF120
£1,710.00

Amina ALF120 In-Wall or Ceiling Passive Subwoofer
with FREE UK DELIVERY

Amina ALF120 is a passive subwoofer that can play the loudest and lowest bass whilst remaining easy to install into a wall or ceiling.

Using a Distributed Transmission Line design using an array of 4″ drivers, the ALF120 packs a punch whilst staying incredibly slim. At only 118mm thin and 345mm wide, it is designed to fit into a cavity wall or ceiling.

Requiring a DSP amplifier (or suitable system processor), the ALF120 can play down to 27Hz at 111dB at 1m from just 50W. This makes the subwoofer perfect for great music systems but also media rooms and home theatres.

Amina Tip:
Whilst subwoofers and bass enhancers have been designed to fit into a wall or ceiling, another great installation option is to build them into cabinetry or even have them sat in-room. A subwoofer could port through kick-boards in a kitchen, or from under a sofa or bed. As long as airflow is not impeded, the subwoofer vent can be easily disguised.

Amina Warranty:
10 year manufacturer limited warranty for residential applications.

We are authorised Amina retailers. Brand new and complete with the full warranty.

Nominal Impedance 6 Ohms
Power Handling 50W
Sensitivity 96dB 1m/2.83Vrms (quarter space)
Frequency Response 27Hz - 120Hz (±6db) 48dB/Octave bandpass
Electrical Connection Push Terminal
Fixing Requirements Felt isolation-pads (included)
Protection External DSP protection (voltage limiting) - Not included
Port Location Front or end-fire location options
Port Dimensions 308mm x 14mm (12” x 9/16”)

1605mm x 345mm x 118mm
(633/16” x 131/2” x 43/4”)

Product Weight
17.5Kg (38.5lbs)
